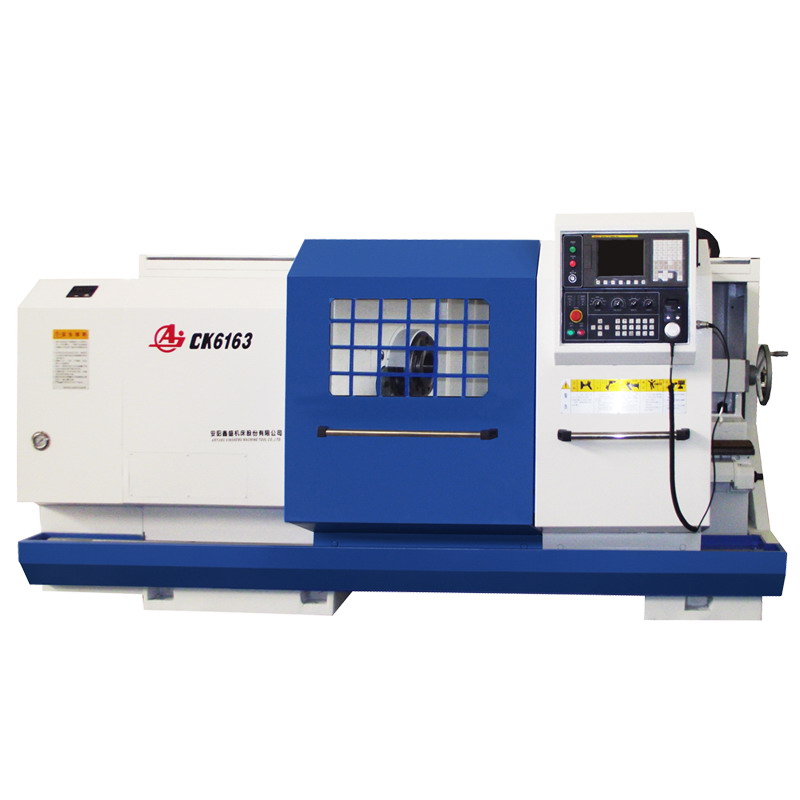

CK6163/6180/6194、CKP6163/6180/6194 Series are economical and practical CNC lathes. With optimized structures, unfailing performance, high quality, simple programming, and easy handing, they are suitable for turning of complicated shaft, sleeve, and disk type work-pieces such as turning lf internal and external cylindrical, conical, arc surfaces and various threads, and even drilling, boring and reaming holes. And they are especially fit for turning of diversified work-pieces on small and medium batches. They are of high versatility, high efficiency, low inferiority and good conformability. So to be widely used in various trades, such as automobile industry, petroleum industry, military industry, and so on.
ITEM |
Unit |
CK/CKP6163 |
CK/CKP6180 |
CK/CKP6194 |
CAPACITIES |
Swing over bed |
mm |
630 |
800 |
940 |
Swing over carriage |
mm |
340 |
510 |
650 |
Max.length of workpiece |
mm |
750 1000 1500 2000 3000 4000 5000 6000 |
Max.turning length |
mm |
600 850 1350 1850 2850 3850 4850 5850 |
Pan of guideway |
mm |
550 |
Max.weight of workpiece |
Kg |
1500 |
SPINDLE |
Spindle nose |
mm |
C11 |
Spindle bore |
mm |
100 |
Taper hole of spindle |
|
1:20/120 |
Range of spindle speeds |
r/min |
≤1000 |
≤800 |
No.of spindle speeds |
|
CK:Stepless/CKP: Stepless in2 gears |
Chuck |
mm |
325 3-jaw manual |
SCenter height from bed |
mm |
315 |
400 |
470 |
FEED |
Min.feed increment |
mm |
0.001/0.001 |
Rapid speeds |
mm/min |
3000/6000 |
Max.travel |
mm |
390 |
475 |
475 |
TURRET |
Turret working position |
|
Vertical 4-position(V6/V8 Optional) |
Indexing time |
s |
2.4 |
indexing repeatility |
mm |
0.008 |
Section of tool shank |
mm |
32x32 |
TAILSTOCK |
Dia. of tailstock quill |
mm |
100 |
Travel of tailstock quill |
mm |
250 |
Taper hole of tailstock quill |
|
Morse5 |
OTHERS |
Workpiece accuracy |
|
IT6~IT7 |
Surface roughness |
μm |
Ra1.6 |
Main motor power |
Kw |
11 |
Lathe mass |
kg |
5100 5300 5700 6100 7100 8400 9400 10400 |
Length |
mm |
3200 3445 3895 4390 5390 6580 7580 8580 |
Width |
mm |
1800 |
Height |
mm |
1880/1980/2010 |
CNC Control system |
|
FANUC 0i-TF(5)/SIEMENS 828D/GSK980TDC |
